Market Profile
Market Profile will display real time as well as historical trades for a particular market. Market Profile is a unique style of chart that organizes trade data by time, price, and volume. Customize letter sequences and the session start letter. Navigate Market Profile with smooth scrolling and zooming. Letter shading based on time or volume. Profile information boxes show common values and computations. Configurable time interval per letter. Customize the look and feel by adjusting fonts and colors.
To open select Market Profile from the main window’s New Item Menu.
Selecting Market Profile

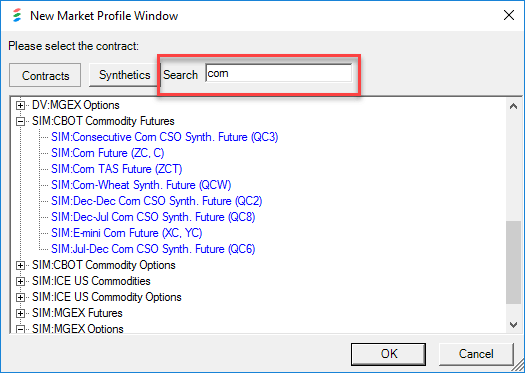

To select a new Market Profile window you can select chart from the New Item Menu.
Click the + to the left of the exchanges to see a list of available contracts. Or you can type either the name or symbol of the product to find it faster.
Double click a desired contract or select it and click Ok.
Scrolling and Zooming
You can scroll the Market Profile window easily by clicking and dragging anywhere within the chart. Additionally, clicking in the price or time axes will allow you to scroll just those axes.
Zoom the Market Profile in and out by right-clicking in either the price or time axes and dragging.
Click the reset button on the bottom right-hand side of the chart, or press the keyboard hot-key ‘Home’ to jump back to the current active profile and center on the last trade price.
Letter Colors and Style
The Market Profile window opens with rainbow colors and blocked-letter view turned on by default. Adjust the rainbow coloring, TPO styling, and TPO coloring from the Market Profile properties window.
Toggle blocked-letter view.
Change the rainbow coloring of the letters using the properties window. Other TPO styling is also available.
Properties → Display (Tab) → TPO Symbol Color → select desired color.
Single Profile View
In single profile view the time scale is no longer scrollable and the profile is anchored to the left side of the window. The price scale can still be scrolled by clicking and dragging, and the chart can still be zoomed by right-clicking and dragging on either the price or time axes.
Enable single profile view from the Market Profile properties window.
Image Toggle single profile view.
Keystroke toggle single profile view.
Properties → General (Tab) → Single Profile View → checkbox
Price Volume
A histogram chart of relative volume traded at each price is displayed to the right of the profile.
Volume can also be displayed behind the TPO symbols to free up some horizontal space on the chart. This option usually looks better if blocked-letters are deactivated.
Toggle price volume.
Keystroke toggle price volume.
Properties → Display (Tab) → Show Price Volume → checkbox
